AUDIO TECHNICA AT33PTG/ 2 DL MVNG COIL CART BLK/ SLV

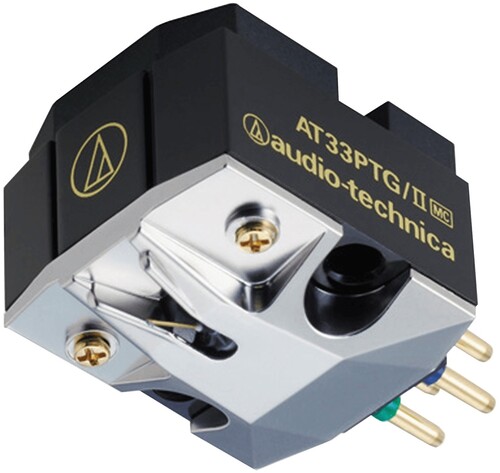

Audio Technica AT33PTG/2 Dual Moving Coil Cartridge (Black/Silver)
The AT33PTG/II dual moving coil cartridge features a Microlinear stylus that, with its small curvature radius, delivers low-distortion, high-range performance, even when playing the inner circumference of a record. The Microlinear stylus, which has an average life span of around 1,000 hours, is mounted on a nude tapered boron cantilever with a double damper for reduced weight and better audio quality.
The cartridge’s two coils provide excellent channel separation and are affixed within a strong, lightweight mold made of hard resin to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission.
Moving coil cartridge with Microlinear stylus delivers exquisite, full-range audio reproduction
Advanced tapered boron cantilever and reduced coil weight improve the audio quality, particularly in the higher frequencies
Neodymium magnet and permendur yoke dramatically enhance the magnetic energy
PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer
High-separation, wide-response dual moving coil
Strong, rigid housing limits unnecessary vibration
Precision-cast hard aluminum alloy body enhances rigidity and the signal-to-noise ratio
Frequency Response - 15-50,000 Hz
Channel Separation - 30 dB (1 kHz)
Vertical Tracking Angle - 23°
Vertical Tracking Force - 1.8-2.2 g (2.0 g standard)
Recommended Load Impedance - More than 100 ohms (when head amplifier is connected)
Stylus Shape - Microlinear
Cantilever - Gold-plated nude tapered boron
Mounting - Half Inch
Dimensions - 16.0 mm (0.63") H × 16.6 mm (0.65") W × 26.5 mm (1.04") D
Weight - 6.9 g (0.24 oz)
Non-magnetic screwdriver; 2 washers; 2 nuts; cartridge installation screws (13 mm × 2, 19 mm × 2); plastic protector; brush; PCOCC lead wire set
