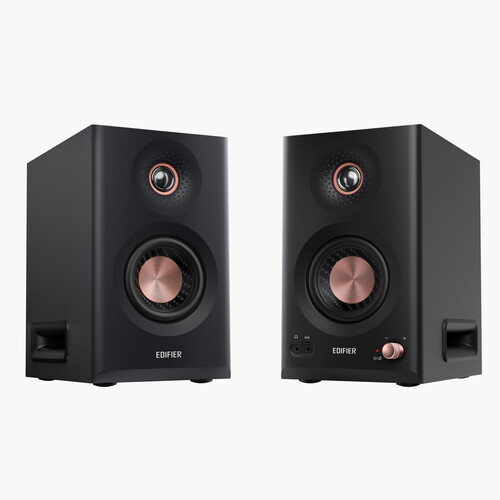

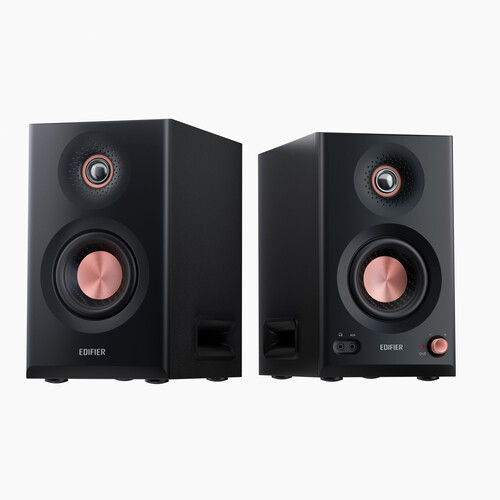

MR5 2.0 Monitor Speaker System

Engineered for Accurate Sound Reproduction

Featuring patented acoustic architecture and a sophisticated tri-amped active crossover, the EDIFIER MR5 delivers a rich and natural sound with seamless transitions across lows, mids, and highs. Designed for precision, it can faithfully reproduce every detail—making them ideal for music production, video editing, and everyday listening.

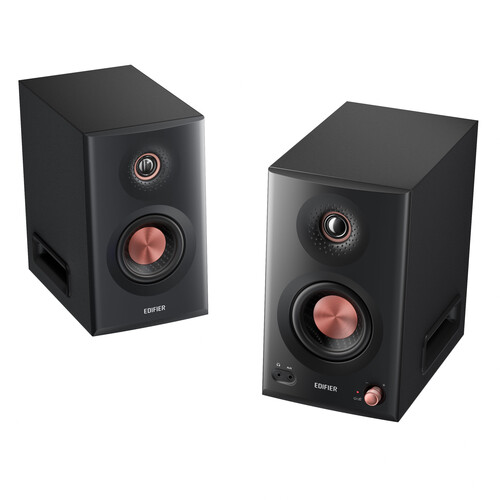

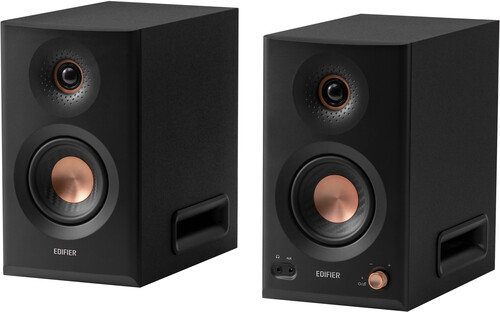

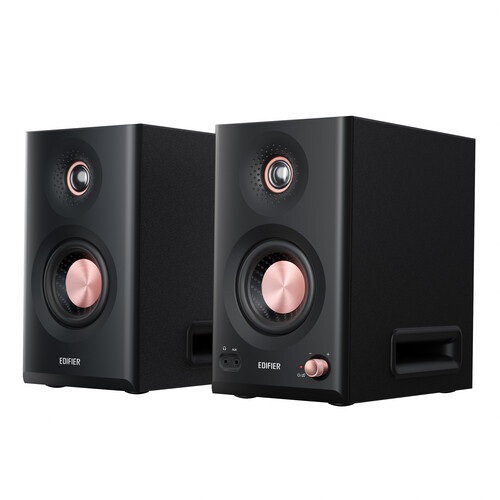

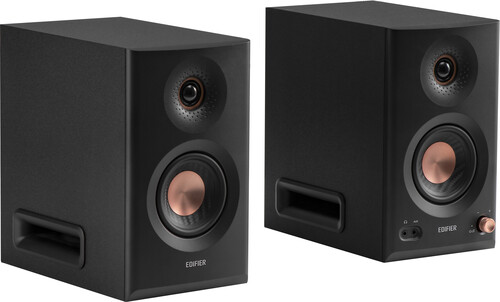

• Patented acoustic architecture with 5” bass drivers, 3.75” mid-range drivers, and 1” silk dome tweeters
• Full digital signal processing and three-way active crossover

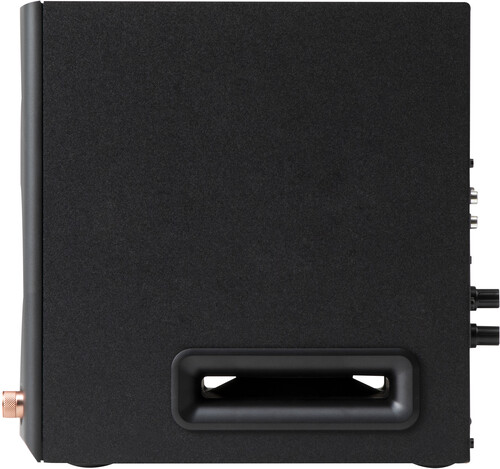

• MDF cabinet to effectively reduce distortion and resonance
• Compact size and easy to connect

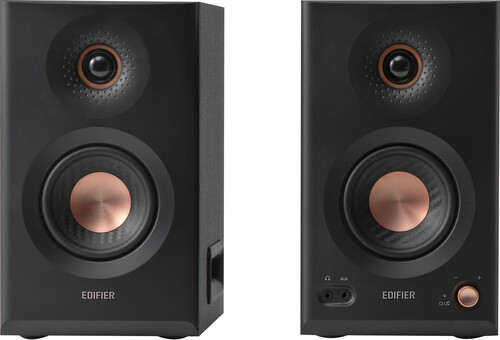

• Multi-function knob on the front panel for power-on/off, volume adjustment, and sound effect switch

Flat Frequency Response: With a wide and flat frequency response from 46Hz to 40kHz, the EDIFIER MR5 offers neutral and transparent audio, ensuring what you hear is exactly what was recorded.

Wide Sweet Spot: The specially designed dimpled tweeter waveguide enhances high-frequency extension and clarity while expanding the listening area. This ensures consistent, accurate sound across a broader space.

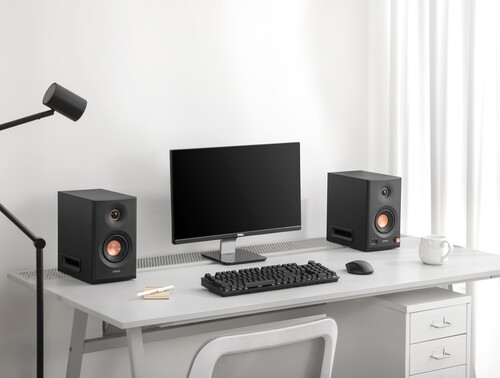

Room-Filling Power: Delivering 110W RMS total output and peak SPL of 101dB (@1 meter), the EDIFIER MR5 is ideal for near-field and mid-field setups and powerful enough to fill medium-sized rooms with ease.

Hi-Res Audio Certified: Equipped with a premium analog front end and Class-D amplifiers, the system supports 24-bit/96kHz resolution, ensuring precise signal conversion and accurate amplification.

Hi-Res Audio Wireless Certified: Enjoy high-resolution wireless streaming with support for the LDAC codec at up to 990kbps and 24-bit/96kHz—compatible with Android 8.0 and above, thanks to the integrated Bluetooth 6.0 receiver. Stream seamlessly via Bluetooth® 6.0 with a stable connection and the ability to connect two devices at once—making it effortless to switch between sources.

Room Acoustic Compensation: Rear knobs and the EDIFIER ConneX app provide multiple settings for acoustic room compensation, allowing you to adapt to different room modes and achieve the optimal listening experience.

• "High" knob: Cuts or boosts frequencies above 10kHz by ±6dB
• "Low" knob: Cuts or boosts frequencies around 125Hz by ±6dB
• Low Cut-Off: Attenuates specific low frequency bandwidth to fit the volume of the listening room.
• Acoustic Space: Compensates for mid and bass boosts to suit speaker placement.
• Desktop Control: Compensates for desktop reflection of sound waves.

Download the EDIFIER ConneX mobile app to enjoy additional features.

• Playback control
• Sound effects switch and customization
• Room compensation settings
• User manual and other settings

Versatile Connectivity Options

• Balanced XLR & TRS Inputs: Professional-grade connections with low noise—perfect for audio interfaces and mixers.
• RCA & AUX Inputs: Easily connect multiple devices simultaneously.
• Headphone Output: Facilitates easy headphone connection.
• Bluetooth Multipoint Connectivity: Stream seamlessly via Bluetooth® 6.0 with a stable connection and the ability to connect two devices at once—making it effortless to switch between sources.

Specifications:

• Type: Pair
• Colors: Black
• Output Power: 110W (Class D Amplifier)
• Trebble Driver: 1" Silk Dome
• Mid-range Driver: 3.75 PP cone
• Bass Driver: 5" Paper cone
• Trebble Waveguard: Dimpled
• Frequency Response: 46-40kHz
• Peak SPL (@ 1M): 101dB

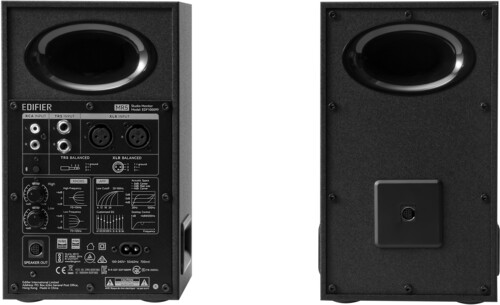

• Physical Interface: Balanced Analog XLR, Balanced 1/4-inch TRS, Unbalanced RCA, 1/8-inch stereo (AUX)
• Headphone Output: 3.5mm
• Bluetooth Version: V6.0
• Controls: Volume (Power, Sound mode switch), Bluetooth function button, High frequency, Low frequency
• Enclosure: MDF
• Dimensions (W x H x D): 159mm x 264mm x 280mm (Active Speaker), 159mm x 264mm x 257mm (Passive Speaker)
• Dimensions: 6.25 x 10.5 x 10.25” (per speaker)

Box Contents: MR5, Power cable, Speaker connecting cable, 3.5mm to RCA audio cable, 3.5mm to 3.5mm audio cable, Quick start guide, Important safety instructions
